BUNKER SOLID FUEL UTILISER
MOBILE POWER PLANTS
Turn waste into a steady income!
WHAT WE OFFER
| Mobile power plants that recycle any of your raw waste, with humidity up to 85% into available electricity, with an efficiency of ~ 48.6% and a payback period of up to 2 years.
| The cost per 1kWh is 1.5€ Without smoke, odorless and emissions-free of C02 and NOx into the atmosphere.
|No additional fuel is required for waste disposal.
| Scalability up to 100 MW
| Without registration and inspections with Technical and Environmental Supervision.
ProWaste Group offers factory ready solutions of modular/mobile waste-based power plants powered by wood waste/biofuels, coal, bark, sawdust, wood chips, peat, sunflower husk, solid household waste, tires and other waste.
Mobile waste-based power plants are manufactured under the brand name "Neutron-ORC-TT" and technologically consist of two units:
01. Smokeless utilization reactor
02. ORC power unit (Organic Rankine Cycle)
Who is this solution for:
| Mining centers/ Data centers in need of stable and cheap energy supply
| Timber industry, woodworking enterprises, and forestry enterprises (wood chips, bark, and sawdust).
| Agricultural enterprises and processors (sunflower husks, chicken manure).
| Waste recycling companies and communal waste landfills.
| Operating enterprises with excess heat.
| Remote production facilities and settlements to create an autonomous energy system.

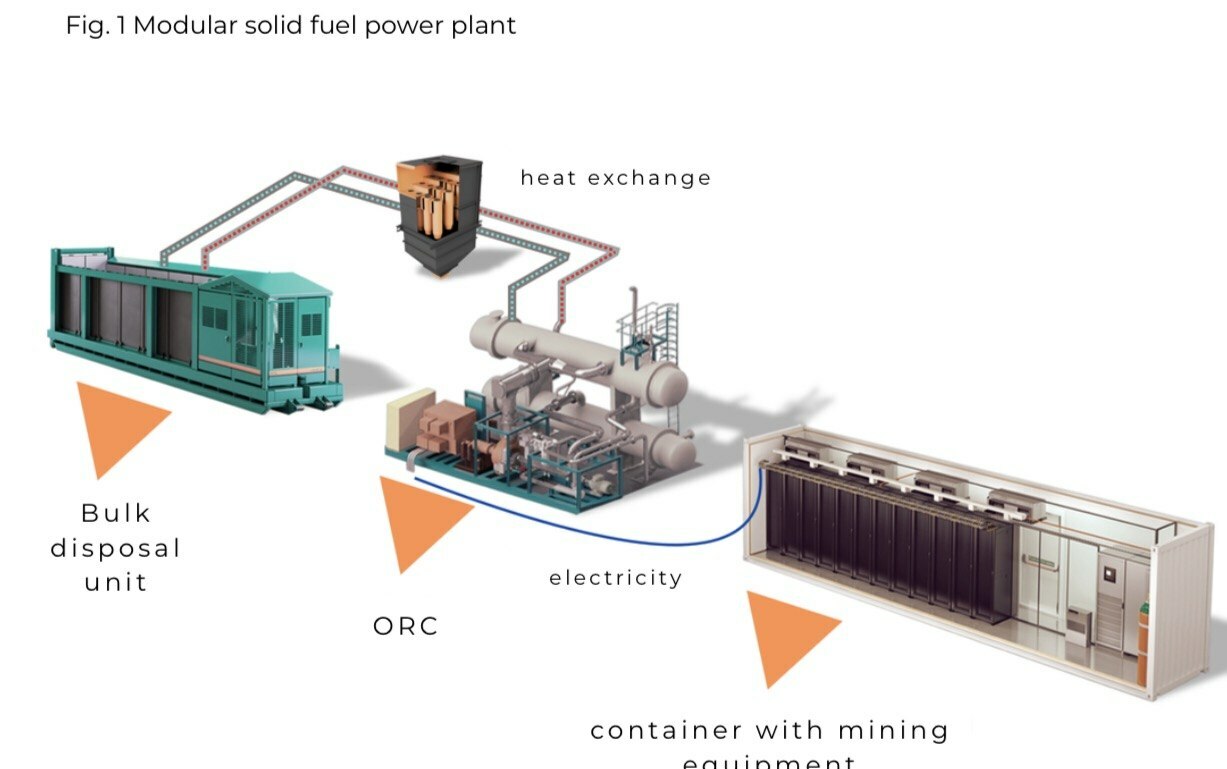

What is the essence of our technology?
A smokeless bunker utilization reactor disposes of any waste and generates hot gases. In the shell-and-tube heat exchanger, gases heat the "working fluid” of the ORC turbine. The turbine drives the generator, producing electricity in a closed loop.
Key Technical indicators.
| Long-term reliability. Resource up to the planned maintenance: 1 time per year every 8000 motorcycle hours
| Life before capital repairs: ~ 6-8 years, after 60,000-80,000 hours;
| Service life: 25-30 years
| Power control range of power plant: 15% — 110%
The equipment can be purchased through a Leasing company
|Our mobile power plants based on various wastes, solid waste, coal and wood are in high demand in the energy supply segment of the crypto industry and data centers (DPCs).
|They provide miners with stable and economical electricity, while simultaneously solving the problem of waste disposal.
WE ARE LAUNCHING CRYPTO FACTORIES AND POWER PLANTS FOR MINING / DATA CENTERS WHERE IT IS PROFITABLE!
MODEL RANGE AND CAPACITIES
“Neutron- ORC-TT-3t": 1 MW - waste consumption 3-4 m3/h
“Neutron- ORC -TT-6t": 2.5 MW - waste consumption 6-8 m3/h
"Neutron-ORC-TT-9t": 5 MW waste consumption 9-12 m3/h

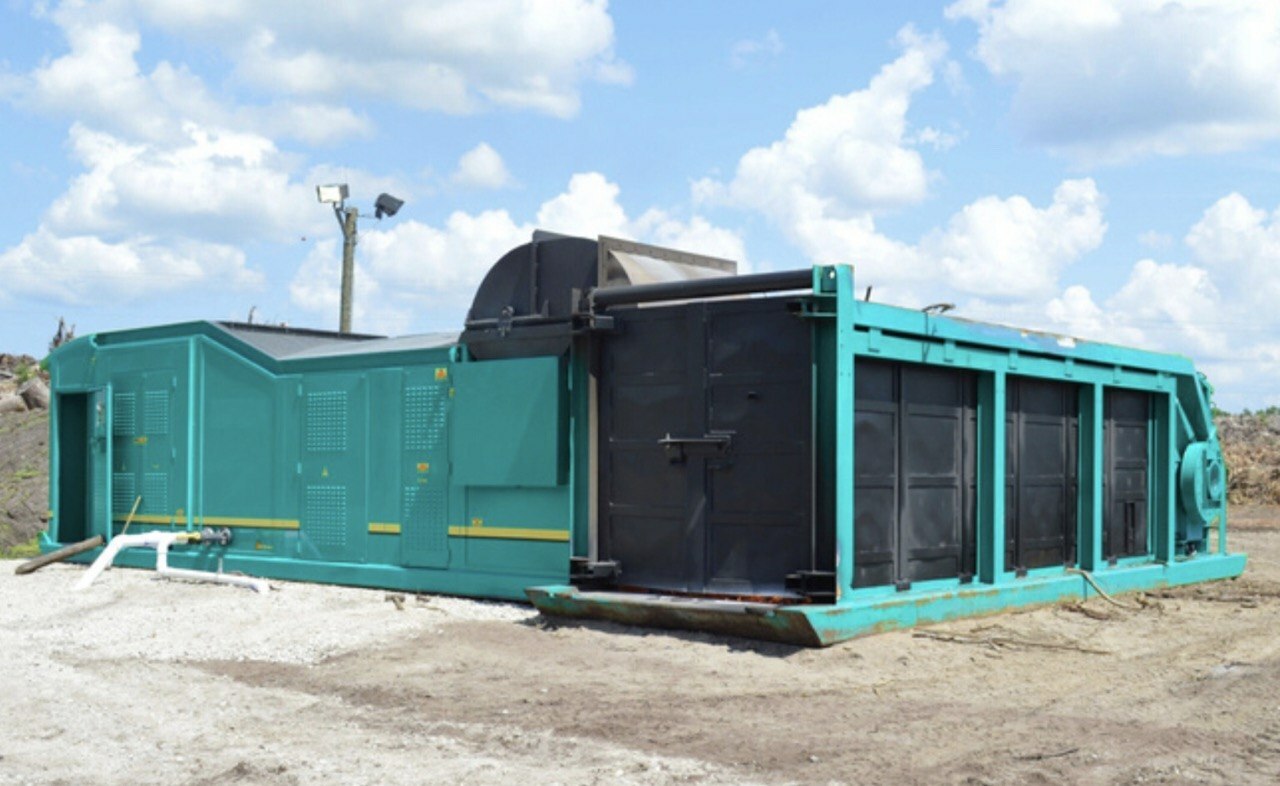

NEW GENERATION SOLID FUEL UTILIZATION REACTOR
The bunker solid fuel utilization reactor is a vortex disposal reactor designed for the efficient elimination of solid waste with a humidity of up to 85%: wood waste, solid household waste, MSW, peat, agricultural waste, chicken manure, rubber, plastic, construction, medical and other waste.
The solid fuel utilization reactor does not require additional fuel during waste disposal. Combustion is carried out through a vortex process and air supply by a high-pressure fan.
Technical and competitive advantages of a bunker utilization reactor for a waste-based power plant:
| Smokeless and odorless combustion - equipped with the latest flue gas recirculation ejector system - patented technology
| Does not require external (additional) fuel
| High combustion temperature: ~ 1200-1400°C
| Supports the incineration of various types of waste with humidity up to 85%
| Power consumption - from 11to 45 kW
| The combustion rate is from 3 to 25 m3/h, depending on the model.
| Ash content — no more than 1.5-5%
DESCRIPTION AND PRINCIPLE OF OPERATION
BUNKER UTILIZATION REACTOR OF A NEUTRON-ORC-TT POWER PLANT:
________________________________________________
01. Complete combustion and cleaning without smoke and odor
The process takes place in a system consisting of one main chamber and five afterburning chambers, which guarantees complete combustion of pyrolysis gases. For final cleaning, flue gases pass through a thermally expanded graphite (TEG) filter and a closed ejector recirculation system that effectively trap CO2 and other harmful compounds - eco-friendly operation without visible smoke and odor.
________________________________________________
02. Turbolization Effect in the filling chamber
The vertical cylindrical furnace chamber is equipped with spirally positioned nozzles. They create a “turbolization” effect – they swirl hot air flows, ensuring intensive mixing and the most efficient combustion of fuel/waste.
________________________________________________
03. Dual waste loading system
Two waste loads are provided:
-The upper feed from the loader. The body is equipped with an upper automatic rollover.
- Automatic fuel supply from the warehouse. The raw waste is fed into the utilization reactor through a retort with a screw conveyor (250 mm pitch) from the fuel hopper.
________________________________________________
04. Ash unloading
Movable grates and a conical ash receiver ensure automatic removal of residues by an auger. The process takes 3-5 minutes.
________________________________________________
05. Low ash content
The ash residue does not exceed 1.5-5% and is a loose gray powder.
________________________________________________
06. Trap-bumper for complete afterburning
A Trap bump is installed in the upper part of the chamber, which optimizes the movement of incandescent gases, increasing their residence time in the high temperature zone for complete decomposition.
Heat transfer from the bunker utilization reactor to the second block of the ORC turbine circuit of the waste power plant:
When disposing of raw waste in a utilization reactor, hot flue gases are sent to a shell-and-tube heat exchanger, where their heat is transferred to an organic coolant (Freon) used in the organic Rankine cycle ORC block.
The heated freon drives a centrifugal type ORC turbine, generating electricity from the generator. Thus, the Neutron-ORC-TT series mobile power plant allows for the simultaneous disposal of waste and generation of electrical energy.
